FEATURES
- ISO 5211 top plate for direct mounting of a wide range of actuators and gears
- Seal ring retainer, made of identical metal as the disc, clamps and combines the seal ring rigidly on the disc face into a robust, composite unit
- Standard hard faced Stellite seat integral to body
- Robust single piece stem
- Live-loaded stem seal system by a set of Belleville springs. Rocker shaped gland bridge compensates for uneven adjustment of gland bolts
- SS316+Nitriding bearings with graphite rings designed to take high radial and axial stem loads, and for ingress protection
- One piece body
- Replaceable laminated seal ring is located on the disc, precision machined for bi-directional sealing.

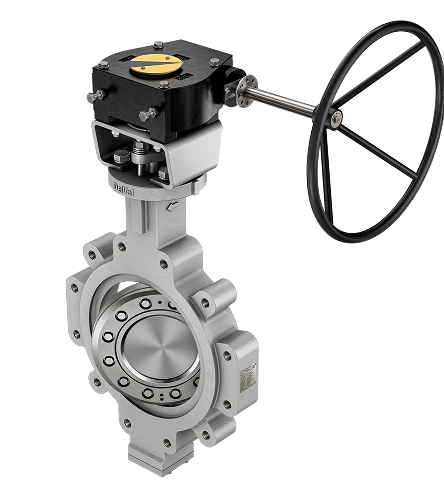

Triple Offset Valves
Triple Offset Valves
Full Specification
- Product Series
- 4
- Size range
- Class 150 - 3" to 102“ (DN 80 to 2550), Class 300 - 3" to 48“ (DN 80 to 1200), Class 600 - 3" to 36“ (DN 80 to 900), Class 900 - 6" to 24“ (DN 150 to 600) & Class 1500 - 6" to 24“ (DN 150 to 600)
- Pressure Rating
- Class 150, Class 300, Class 600, Class 900 & Class 1500
- Design Standards
- API 609, BS EN 593, MSS SP 68 & ASME B16.34
- Testing Standard
- API 598, EN12266-1, ISO 5208, MSS SP 68
- Body Style
- Wafer, Lug, Double Flanged - Short, Double Flanged - long, Buttweld
- Body Material
- WCB,WСС,LCB,LCC,CF8M,CF8,CF3,CF3M, Duplex SS
- Disc Material
- WCB,WСС,LCB,LCC,CF8M,CF8,CF3,CF3M, Duplex SS
- Stem Material
- 410 SS, 17-4 PH, XM-19, Inconel 718, Duplex SS
- Seat Material
- Stellite 21 / Stellite 6
- Seal Material
- S31803+Graphite, XM 19+Graphite, Inconel 625+Graphite, Solid Metal Seal
