FEATURES
- Split body allows full liner replacement
- PTFE face over an EPDM backing
- Liner isolates body and stem from the media
- No flange gaskets required
- Bidirectional bubble tight shutoff
- Wafer or lug body styles
- Single pc thin profile disc / stem
- Bi-directional U-cup stem seal

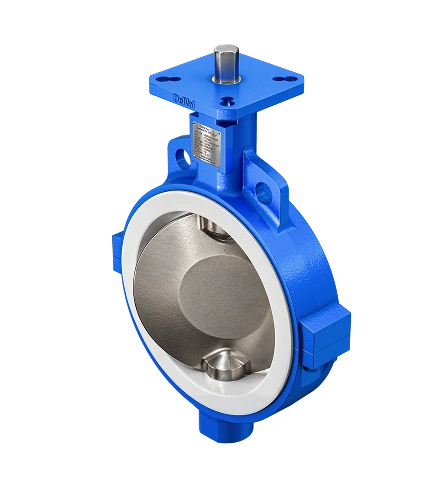

Resilient Seated Butterfly Valves
Series 40/41
Industrial Split Body PTFE Seated
Full Specification
- Product Series
- 40/41
- Size range
- 2"-24" (DN 50 to 600)
- Pressure Rating
- 150 PSIG (PN 10)
- Design Standards
- API609,BS EN 593
- Testing Standard
- API 598, BS EN 12266-1
- Body Style
- 40 - Wafer / 41 - Lug
- Body Material
- (CI/DI - ASTM A126 Class B, ASTM A395 60-40-18), (CS/SS - ASTM A216 WCB, ASTM A351 CF8M/CF8)
- Disc/Stem Material
- 316 SS, Duplex SS
- Seat Material
- PTFE lined EPDM
